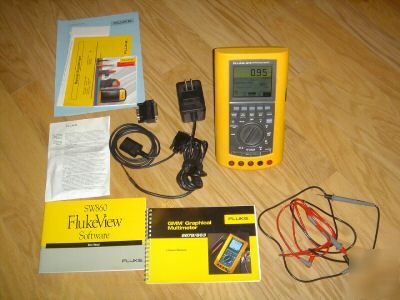

Fluke 867B Graphical Multimeter
Fluke 867B Features at a Glance:
The Fluke 867B GMM Gives You the Big Picture
Fluke 867B Features at a Glance:
Selectable True-rms or Average Sensing
Continuity/Conductance/Capacitance
Duty Cycle/Pulse Width/Period/Frequency
Min/Max/Average with Time Stamp
* Auto/Manual Ranging, Smoothing™
* RS232 Interface (software and cable optional)
The Fluke 867B GMM Gives You the Big Picture
* 0.025% basic dc accuracy to discriminate low-level signal variations in transducers and analog electronics.
* Direct current from 0 to 10 Amps, with resolution down to 10nA
* True-rms ac with bandwidth to 300 kHz
* Capacitance from 40pF to 10,000 µF
* Measure dB gain or loss in amplifiers, filters, or attenuators
* Tested for IEC 1010-1, CAT III 1000 Volts for industrial distribution systems
* And more: AutoDiode™, TouchHold®, Smoothing™, Relative, Peak Hold, Auto/Manual Ranging
RS-232 Interface for communication to computers and printers. Import waveforms into reports (software and cable optional
Here's one test tool that's six test tools in one:
Fluke's most accurate Multimeter, from the company that makes the best multimeters in the world. With Fluke's guaranteed ruggedness and reliability.
Easy-to-use Waveform Display from dc to 1 MHz. Troubleshooting no longer means groping in the dark. Waveforms are like x-ray pictures of your electrical system. With automatic set-up you get the best view without fiddling with timebase, trigger levels, position, etc.
A Recorder that plots high resolution meter readings in intervals from 1 second to 15 minutes. Record your data in one of three modes-sample, high/low or average. With the RS-232 interface, you can connect to your computer using FlukeView software and collect as much data as your hard disk can accommodate (software and cable optional).
Component Test for checking voltage-current signatures on resistors, capacitors, semiconductors and more.
Logic Test offers a simple way to indicate logic transitions to 10 MHz, showing if a circuit is active, stuck high, or stuck low.
A Frequency Counter that measures up to 10 MHz.
Combo mode shows combined meter and and waveform displays for quick check of distorted waveforms.
Record events and trends. Helpful for troubleshooting intermittent problems or profiling loads.
Glitch Capture displays voltage impulses (spikes) which can effect data communications and electronic equipment.
Measurement Range: 300.00 mV to 1000.0V
Measurement Range: 300.00 mV to 1000.0V
AVG Bandwidth: 50 Hz to 30 Khz
Measurement Range: 300.00 µA to 10.000A
Basic Accuracy: ±0.05% to 0.2% N/A
Measurement Range: 300.00 µA to 10.000A
Measurement Range: 300.00 Ohm to 30.000 MOhm
Measurement Range: 2 Hz to 2 MHz
Measurement Range: 10 nF to 10,000 µF
Captures positive and negative peaks ³ 10 µs
Measurement Range: 2, 4, 8, 16, 50, 75, 93, 110, 125, 135, 150, 300, 600, 900, 1000, 1200 Ohm references
Fluke 867B General Specifications
IEC 1010-1 Category III for 1000V; UL 3111, CSA-C22.2 No. 1010-1-92, TUV, ENG1010-1
LCD, dot matrix, 240x200 pixels
-20°C to 60°C (batteries removed)
NiCad battery pack: 8 hrs (supplied with 867B)
69.9 mm H x 137.2 mm W x 246.4 mm L
With battery pack: 3.01 lb (1.35 kg)
With AA batteries: 2.64 lb (1.19 kg)
