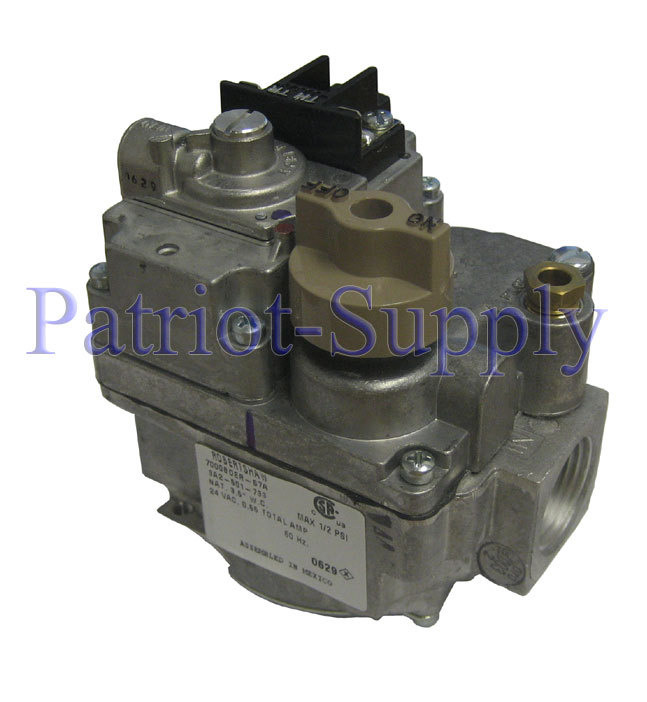

Robertshaw 700-056 24V 3/4" x 3/4" gas valve slow open


24 volt UNIVERSAL NATURAL GAS VALVE 3/4" INLET X 3/4" OULET, 350,000 BTU CAPACITY. HAS SLOW OPENING FEATURE FOR SOFT IGNITION.
These 700 Series Gas Valve Uni-KitsĀ® are designed for intermittent pilot, direct spark and hot surface applications. They incorporate a MANUAL valve, pilot valve, and a main gas presure regulator. Each Uni-Kit includes all the necessary parts and instructions needed to convert to direct spark or HOT surface applications. These valves are designed for many residential and commercial applications such as central heating units, wall heaters, boilers and mobile home furnaces. They also have all the wiring connections, manual selector and adjustments easily accesible.
REPLACES FACTORY MODEL 7000BDER-S7A. FUNCTIONAL REPLACEMENTS (MAY REQUIRE REWIRING AND/OR REPIPING) FOR the FOLLOWING: 08-7101, 1D278, 7D2-E7B-048, 1D279, 1G008, 13120308, 13120514-02, 13120514-03, 15691-481, 15691-483, 15691-485, 222-39176-01, 222-39176-02, 222-39176-03, 222-22222-02, 3-16865, 325-30A1, 32530A2, 32701, 36071-01, 36071-03, 36C68-404, 36C74-313, 36C74-413, 36E01-103, 36E01-106, 36E01-201, 36E01-205, 36E01-223, 36E01-225, 36E01-226, 36E01-227, 36E01-240, 36E01-241, 36E01-305, 36E36-2, 36E36-210, 36E36-227, 36C68-423, 36E36-238, 36E36-254, 36E36-255, 3A0-501-531, 3A2-501-517, 3A2-501-532, 3A2-501-723, 3A2-501-733, 3A2-501-756, 3A2-501-791, 3A2501733, 3B0-501-502, 3B5-501-737, 3C0-501-788, 3C7-501-756, 53C1201, 60-21023-02, 600971, 601033, 700-050, 7000BDER, 71C-11A-012, 71C-11A-017, 71C-11A-026, 71Y-41A-012, 71Y-41C-034, 74-6021023-01, 7D2-D5B-029, 7D2-E7B-049, 7D2-FOC-050, 807-0439, 8070869, 93A8901, 93A9001, 98G1801, B1812059, C115497P02, C94646-02, C94646-1, C9464602, EF34CW244, P361-1513, PSI700-056, V800A 1052, V845A1067, V845A1109, VR8204M1018, VR8204M1034, VR8204M1083, VR8204M1125, VR8205H8016, VR8304H2200, VR8304H3208, VR8304H3216, VR8304H3224, VR8304H3240, VR8304H3505, VR8304H4206, VR8304H4214, VR8304H4230, VR8304H4248, VR8304K2404, VR8304M2105, VR8304M2113, VR8304M2121, VR8304M2139, VR8304M3103, VR8304M3111, VR8304M3129, VR8304M3152, VR8304M3160, VR8304M3178, VR8304M3186, VR8304M3517, VR8304M4002, VR8304M4010, VR8304M4036, VR8304M4044, VR8304M4515, VR8304M4804, VR8305H4005, VR8305M3100, VR8305P4204, VR8305P4527, VR8440A1003, VR8440A1011, VR8440A1029, VR8440A1037, VR8440A2027, VR8440A2068, VR8440A2159, VR8440A3009, VR8440A3017, VR8440A3025, VR8440A3033, VR8440A3041, VR8440A4007, VR8440A4015, VR8440A4023, VR8440A4031, VR8440A4049, VR8440A4056, VR8440A4064, VR8440A4205, VR8440A6002, VR8440A6010, VR8440A6028, VR8440A6044, VR8440A6051, VR8440A6069, VR8440A6077, VR8440C4005, VR8440H2038, VR8440H2046, VR8440H3036, VR8440K2018, VR8440K2026, VR8440K3016, VR8440K3073, VR8440K4048, VR8440K4055, VR8440M1018, VR8440M1026, VR8440M1034, VR8440M1042, VR8440M3006, VR8440M3014, VR8440M3022, VR8440M3030, VR8440M3048, VR8440M3055, VR8440M3063, VR8440M3089, VR8440M4004, VR8440M4012, VR8440M4020, VR8440M4038, VR8440M4046, VR8440M4061, VR8440M4087, VR8440M6009, VR8440M6017, VR8440M6025, VR8440M6033, VR8440M6041, VR844A1010, VR844A1036, VR844A1069, VR844A1077, VR844A1093, VR844K1000, VR844K1018, VR844K1026, VR844K1034, VR844M1006, VR844M1022, VR844M1030, VR844M1048, VR844M1055, VR844M1071, VR844M1089, VR844M1097, VR844M1105, VR844M1113, VR844M1121, VR844M1139, VR844M1154, VR844M1204, VR844M1253, VR844M1261, VR844M1279, VR844N1011, VR8450A4113.
REQUIRES ADD-ON PRESSURE REGULATOR KIT - ORDER 1751-005 SEPARATELY. ADJUST PRESSURE REGULATOR ON NEW REPLACEMENT TO MATCH THE SETTING ON OLD UNIT: 11G2091.
REQUIRES ADD-ON PRESSURE REGULATOR COVER PLATE KIT - ORDER 1751-013 SEPARATELY: 15691-482, 15691-484, 15691-486, 3A2-502-712, 3A2-502-789, 3C6-502-812, 3C7-502-812, 607202, VR8305P4212, VR8450P4042.
REQUIRES ADD-ON PRESSURE REGULATOR KIT - ORDER 1751-004 SEPARATELY: 315416, 62289.
ADJUST PRESSURE REGULATOR ON NEW REPLACEMENT TO MATCH THE SETTING ON OLD UNIT: 35C7901.
REQUIRES add-on PRESSURE REGULATOR KIT - ORDER 1751-021 SEPARATELY: 3A2-507-719.
PLUG PILOT OUTLET ON REPLACEMENT. CHECK BTU CAPACITY OF NEW VALVE VERSUS OLD UNIT: SP-119.
CHECK BTU CAPACITY OF NEW VALVE VERSUS OLD UNIT: VR8304H4503, VR8304M2501, VR8304M3509, VR8304M4507.
FOR L.P. GAS APPPLICATIONS: VR8440A6036.
REQUIRES ADD-ON PRESSURE REGULATOR COVER PLATE KIT - ORDER 1751-013 SEPARATELY. FOR L.P. GAS APPLICATIONS: VR844M1147, VR844M1238, VR844P1157.
FOR NATURAL GAS APPLICATIONS: VR844M1238.
