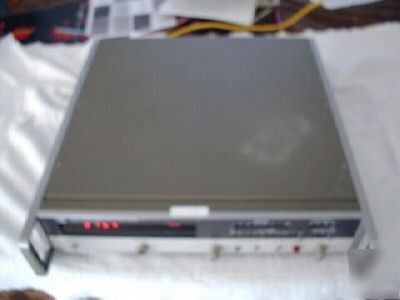

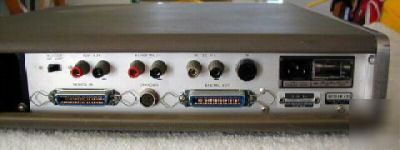

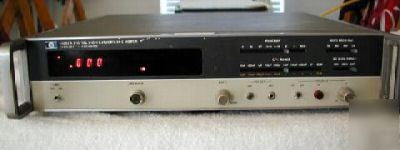

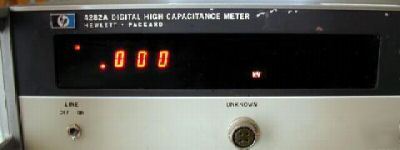

## Hp - agilent 4282A digital high capacitance meter w/cab

The Agilent HP 4282A High Capacitance Meter measures capacitance, dissipation factor, ohm-farad & DC voltage. Measuring frequencies are 50, 60, 100 & 120Hz; 50 & 60Hz synchronized by line frequency. Measuring voltage: 10 nF to 10 mF ranges <1 V rms; 100 mF range <0.1 V rms and 1 F range <10 mV rms. Basic accuracy of ±1.5%.

SPECS: Measuring Functions: C (capacitance), D (dissipation factor), ohm-F (ohm-farad) and V (dc bias voltage or external voltage). Selectable by function switch Alternative Measuring Functions: C-D (capacitance and dissipation factor are alternately displayed) and C-ohm-F (capacitance and ohm-farad are alternately displayed) Measuring Circuit: series equivalent circuit using four-terminal method Measuring Frequencies: 50 Hz, 60 Hz, 100 Hz, and 120 Hz (50 Hz and 60 Hz synchronized by line frequency). Function * C (capacitance): 10.000 nF to 1.0000 F, four full digits, 9 ranges in decade steps, manual selection * D (dissipation factor): 1.000 to 10.00, three full digits, 2 ranges, auto selection * ohm-F (ohm-farad): 1.000 ohm-mF to 10.00 ohm-mF three full digits, 2 ranges, auto selection C Ranges: 10 nF, 100 nF, 1 µF to 1 mF, 10 mF, 100 mF, 1F Bias Voltages * Internal Source: 0 to 10 V, 0 to 100 V, 2 ranges, continuously variable * External Source: usable up to 600 V dc.

Reasonable offers are always well come. REASONABLE ONES!
