Er combo multi collet tray er 25 er 20 and er 11 cnc

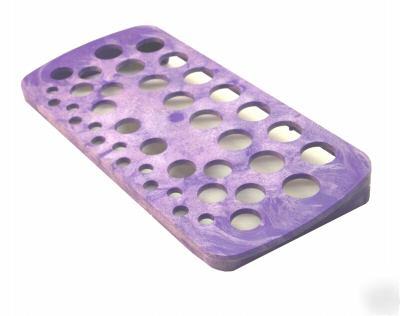

Excellent diagonal hole pattern design for easy collet access
Holds up to 40 collets of the following sizes
This is one complete set of each size, you can put them all in one tray
Dimensions are 1" 5/16 H. X 5" 1/4 W. X 11" 3/16 L.
This innovative patented design, is to place it over the working bench, or hang it on the wall,
With an inclination of 8 degrees that deflect the light for easy identification of the collets
High impact plastic material will support up to 12 Lbs. on the wall, and 25 on flat surface.
Protect your investment, this Collet Caddy will maintain your collets separated and clean.
CNC Lathe, Swiss, Mill and multiple applications
Try it, we guarantee that you will be satisfied.
A look at the ER collet system's benefits
When faced with the market's enormous choices in collet systems, finding the right collet system for your CNC lathe or CNC machining center may seem daunting. To simplify your choice, take a moment to look at the advantages and disadvantages of the more popular collet systems used in the US.
Several systems are used to hold round shank tools. These include:
* ER collet system (Compatible with RD, DR, AR and ESX)
* Double angle collet system
All of these systems are good, depending on the application. There are, however, differences in the systems based on holding power, flexibility, price, and application.0900er
A selection of ER collet systems.
When drilling from 3Ž4´´ to 1 1Ž2´´, the TG collet system is the best choice because it is a larger collet. More contact on the shank is used because of the larger collet, thus it offers more holding power. Drilling over 3Ž4´´ is not common in most shops, however, and represents only a small percentage of holes drilled.
Rigid tapping has become popular in the latest generation of CNC machines, and the tooling requirements for this feature have made collet chucks a viable solution for tapping. Both the TG and the ER collet systems make rigid tap collets for their holders. They are manufactured with a broached square in the rear of the collet to lock the square of the tap into the collet. This eliminates any twisting of the tap inside the collet. The ER collet seems to work the best for this application because the collet is short and the tap fits better into this system.
In this area of tapping, the ER collet system has a significant advantage over other systems. This collet consists of three main parts: the shell of the collet, the spring, and the insert that holds the tap. The collet can be used in any standard ER collet chuck by exchanging the collet the same as any other collet. Since this collet is short, it does not take up a lot of Z-axis on the lathe or machining center. This collet is popular on Swiss-type turning centers where toolholder length is important. This makes the ER collet system a contender for CNC lathe applications.
Normally reaming is done with a floating holder, but in certain applications, a standard collet holder can be used. Both the ER and TG collet systems can be used for reaming with a floating holder, but due to the length of the TG collet, the ER collet is a better choice. The ER collet is short enough to provide less interference on the turret of the lathe. Also, ultra-precision collets can be purchased to provide better specifications for concentricity than the TG collets.
Increased tool life and increased speeds and feeds are the spoils of coolant through the tool applications. Their popularity led collet and collet holder manufacturers to develop a system to hold these new tools and to seal them to prevent leaking.
The first solution was to seal the collet with silicone and try to bond the metal to the silicone. Although this worked, the collet had no clamping range, which ruined the collet's benefits. The other disadvantage was that once the bond broke down between the collet and the silicone, the collet was ruined. All of the pressure was lost at the end of the tool.
High speed machining is another growth area that has included collet chuck manufacturers. The TG and the ER collet systems can be used with a well-balanced holder. The ER system seems to be the better choice though, because of the shorter length of the collet and collet chuck. The closer the collet to the face of the spindle, the less chance of run out at the end of the tool.
The ER collet system's answer is a bearing nut. The bearing nut eliminates friction between the nut and the collet as you clamp down on the collet, thus pushing the collet farther and straighter down into the collet pocket. With a standard ER collet nut the friction is high between the 30š nose taper on the collet and the taper on the nut; it tends to create friction between the two tapers and may eliminate an extra 1Ž4 or 1Ž2 turn on the collet nut.
Another main difference between holding power of the TG and the ER collet systems is the taper on the front of each collet. The ER collet front nose taper is 30š and has more surface area for the nut to clamp down on. There is more contact area between the nut and the collet, pushing the collet in the collet pocket more firmly.
