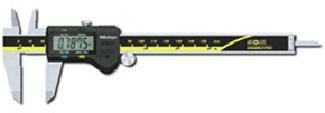

Mitutoyo 6 "caliper 500-196-20

Mitutoyo Series 500 6 "Caliper
* Large and clear LCD readout.
* The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
* Data Hold Unit (959143) is optional.
* With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
* Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.
Accuracy: Refer to the list of specifications
(excluding quantizing error)
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm / .0005”
Length standard: ABSOLUTE electrostatic capacitance type
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Origin-set, Zero-setting, Data output, inch/mm conversion
Alarm: Low voltage, Counting value composition error
