66Tn NEW PRESS BRAKE, Birmingham HB-6680 24"
66Tn NEW PRESS BRAKE, Birmingham HB-6680 24"
New "Birmingham" Hydraulic Press Brake

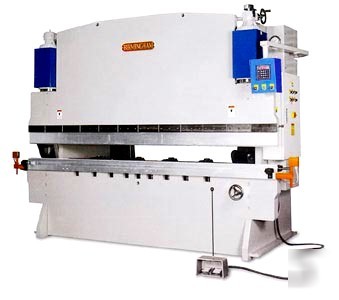

(Note: photo is of the 175 Ton x 126" model)
Distance Between Uprights: 61"
Distance Between Table/Ram: 12"
The Frame is made of hight tension strength stress relieved steel
plate and rigidly bolted/welded to manufacture strong/u-transform
To ensure the movement of the guideblock more smoothly and
The compulsory synchronization of the mechanical structure to
ensure the top die and bottom die are fully parallel at any position
A large tank allows the ail to run smoothly and efficiently. The high-
efficiency, low-noise pump improves the quality of the working
Depth positioning by accurate mechanical stops inside the cylinder
to ensure every bend is to the same exact angle. Adjustable strokes
Removable foot control pedal with safety protection. The upper die
beam is raised back to the top position immediately upon the
operator removing his foot from the pedal.
High-efficiency hydraulic circulation system, quality solenoids and
two powerful cylinders provide maximum and stable output to
execute excellent performance. Ram downward by two-step speed,
fast-speed approaching and slow-speed press bending to shorten
the cycle time. Easy setting work pressure by stepless regulator
with overload protection device to provide proper pressure.
Two micro-fine adjusting bending angles, this device provides two
directional adjustments, increase or decrease bending angle(s), to
achieve a uniform angle on both ends of the bent workpeice.
One-piece upper forming punch. One-piece 4-way bottom lower die.
Multi-size V-slot design to meet most bending applications.
Precision ballscrew type back gauge with readout disply and micro
Hydraulic bottom die angle compensation.
Jog, single and auto bending modes.
24" Power ballscrew back gauge with digital counter display
Powered bending angle setting device.
Hydraulic bottom-die angle compensation.
One top die and one 4-way bottom die (6 V's for 66 ton and over)
Control panel with all switch low voltage wired.
Removable foot pendal with safety protection housing.
Tool box with maintenance tools and leveling pads.
Optional Equipment (call for pricing):
Safety sensor protection system.
Power grease injecting system.
2 Axis CNC back gauge with German ELGO #P8822
Machine Location: HARRISON, NJ
